Fly Fishing rod Tubes
Do-it-yourself Rod Tubes
They are not quite, nevertheless they sure do work!
From time-to-time, someplace later on, you will need a rod pipe because of that one rogue pole without a sock and without a tube. However you've stalled on purchasing a rod pipe becuase they truly are so darned high priced. The clear answer will be create your very own! Within a half time, it is possible to fabricate a dozen approximately tubes if you want many. It really is that easy!
Plus the price is appropriate also.
Materials required are minimal in addition to investment is little. You will need:
- A china marker
- a rag
- A fine-toothed, small kerfed pipeline or hand saw
- PVC Primer and Cement
- PVC piping, schedule 40 works good
- 1 closed endcap
- 1 open female-threaded endcap
- 1 male-threaded end plug
A straightforward cost description reveals an attractive cost for this Do-It-Yourself task. For a 3-foot rod pipe, my costs were:
- PVC pipe: $0.238 per base: $0.71
- 3'x1' flannel fabric for rod sock: $0.25
- Closed-end limit: .49
- Threaded end cap: closed-end limit: $1.49
- Threaded end limit: $0.98
- Threaded end connect: $0.57
- glue and tools: negligable cost
TOTAL PRICE FOR A 3-FOOT TUBE and sock cloth: $4.00
The upfront material prices are minimal, and material is no problem finding. (L to R middle row: available female-threaded endcap, male-threaded end plug, shut endcap.
- Threaded end connect: Closed end cap: $1.49
TOTAL COST FOR A 3-FOOT PIPE and sock cloth: .00
Lay the PVC on a set surface and measure your rod(s) contrary to the PVC. Mark the slice point with a china marker. You can easily cut the PVC towards exact length of the rod while the end cap and threaded limit include about a 1/2" towards the length, giving you an additional inches to relax and play with.
Following the PVC areas tend to be slashed to size, line them up and organize all of the needed end pieces behind the tube into the order in which you will assemble: closed end cap, then your threaded end cap. You'll be happy you organized the components because PVC cement dries rapidly, causing you to be little time to shuffle around trying to find the parts.
Lay-out the pre-cut PVC and all sorts of parts just before assembling. Make sure you operate in a well ventilated areas such as for instance a garage, as shown here.
Priming and cementing
Just before assembling the components, wipe them with a wet fabric to get rid of dust and shipping dirt. This will aide within the priming and glueing tips. Also, be considerate of your self and perform this in a well ventilated area for instance the back patio or your storage.
All PVC needs some priming to 'scuff' within the surface. This is done with a chemical PVC primer. Be careful as PVC primer will most assuredly drip in which you wouldn't like it...it stains which is gluey. Pre-fit the pieces for a feel in which the PVC contact points tend to be. Then prime just those places for each PVC tube. BE sure to prime the tube additionally the inside of each fitted.
Apply the cement in the same manner, coating both the PVC pipe and the within the fitted with ample cement. Quickly construct the fitting in the PVC tube and twist to make certain full coverage associated with cement to all the the glued areas. In only a few moments, the cement will set.
Be very careful with PVC primer...its runny and spots every little thing.
Once the pipes are assembled and glued, allow them an hour or so or more of curing time in a well ventilated area. It isn't better to stick your rod when you look at the recently glued tube...there only might be some concrete that featuresn't dried carefully.

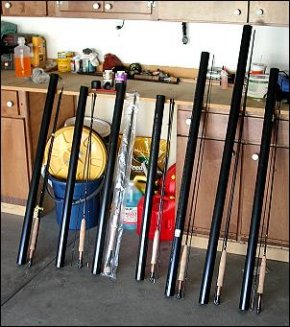

Making a few pole pipes can be carried out in under a half an hour and required no unique resources.
The finishing variations
Although the photo to the right doesn't show the markings, use a metallic permanent pen to label your rod pipe using contents.
Rod socks can be bought from most any rod making provider for approximately $5 to $10, depending on the product you select. Or, to hold the theme of the article, make your very own rod sock towards precise specs.
Me personally, I like simply a sheet of flannel along my rod therefore the width of a base approximately. We begin moving in each pole portion in one single at the same time, like a wrapping a cigar. No sewing is needed and also the price of the flannel is minimal at best.
After that, insert the rod-in-sock, tighten the limit and go to the stream in self-confidence your pole is safely safeguarded!
I really needed some pole pipes to mail some rods I'd offered. After looking for proper cardboard pipes of different lengths, I decided to price away making personal. In the end analysis, the cardboard tubes cost similar and perhaps more expensive for extended sections We required. I then chose to make my own.
These Do-it-yourself pole pipes are not likely to win any beauty or crafstmanship prizes, however with only a sheet of flannel and some PVC they truly are in the same way practical as any on the market...at 1/10th the cost.
